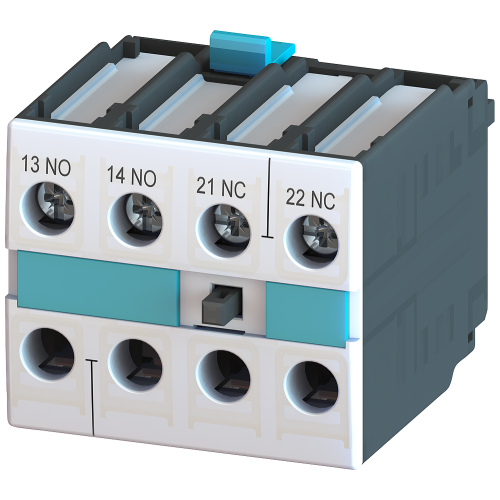

3RH19211LA11

Auxiliary switch block, 1 NO + 1 NC, EN 50005 2-pole, screw terminal, for motor contactors, cable en

Manufacturer's No: 3RH1921-1LA11     Manufacturer: Siemens
Auxiliary switch block, 1 NO + 1 NC, EN 50005 2-pole, screw terminal, for motor contactors, cable en

Availability On Request

POA
  • Auxiliary switch block for motor contactors
  • 1 Normally Open (NO) + 1 Normally Closed (NC) contacts
  • EN 50005 2-pole
  • Screw terminal connection
  • Cable entry at the top
  • Phased-out product, successor is SIRIUS 3RH2


Product

Manufacturer Material ID -
3RH1921-1LA11
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Lamp holder -
UN
Number of fault-signal switches -
-
Mounting method -
Other
Model -
Top mounting
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Screw connection
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0

Availability On Request

POA
