3RH29111NE22

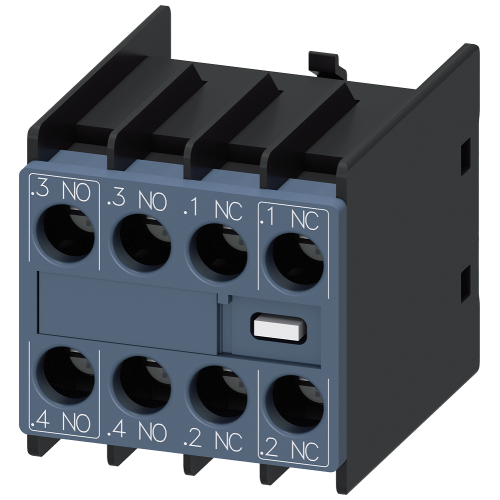

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NO, 1 NC, 1 NC for 3RH and 3RT screw terminal .3/.4, .3/.4, .1/.2,

Manufacturer's No: 3RH2911-1NE22     Manufacturer: Siemens
Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NO, 1 NC, 1 NC for 3RH and 3RT screw terminal .3/.4, .3/.4, .1/.2, .1/.2

Availability On Request

£37.22
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Solid-state compatible
  • Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC) contacts
  • Current ratings: 0.3A/0.4A for NO contacts, 0.1A/0.2A for NC contacts
  • Current path includes 1 NO (solid-state compatible), 1 NO, 1 NC, and 1 NC (solid-state compatible)
  • Front-mounted with screw terminals
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Product video
Instructional video


Product

Manufacturer Material ID -
3RH2911-1NE22
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Lamp holder -
None
Model -
Clip-on
Lamp cap/base -
None
Mounting method -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Number of fault-signal switches -
0
Type of electric connection -
Screw connection
