3RP25052BW300AX0

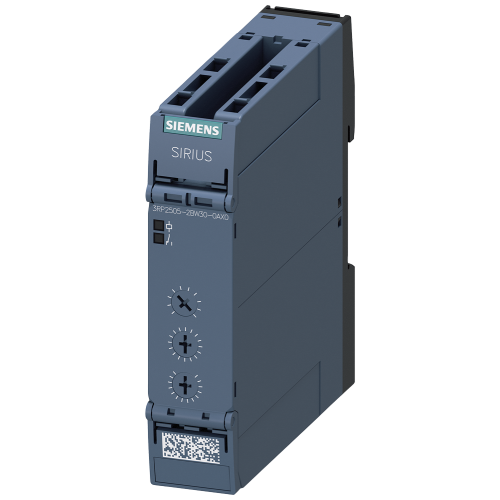

Timing relay with coated PCB, 2 CO, 27 functions, 7 time ranges

Manufacturer's No: 3RP2505-2BW30-0AX0     Manufacturer: Siemens
Timing relay with coated PCB, 2 CO, 27 functions, 7 time ranges

Availability On Request

£164.37
  • Timing relay with painted PCB
  • Multifunction with 27 functions
  • 2 change-over contacts
  • 7 time ranges from 0.05 seconds to 100 hours
  • Operating voltage: 12-240 V AC/DC at 50/60 Hz
  • Equipped with LED indicator
  • Spring-type terminal (push-in)

Spare part

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP2505-2BW30-0AX0
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121529

Technical Specification

Depth -
90 Millimetre
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function flashing, starting with pulse, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Function star-delta -
Height -
100 Millimetre
Number of outputs, delayed, change-over contact -
2
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Outputs, reversible delayed/undelayed -
Rated control supply voltage at AC 50 Hz -
12 Volt
Rated control supply voltage at AC 60 Hz -
12 Volt
Rated control supply voltage at DC -
12 Volt
Time range -
0.05 Second
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre

Availability On Request

£164.37
