3RQ10001GW00

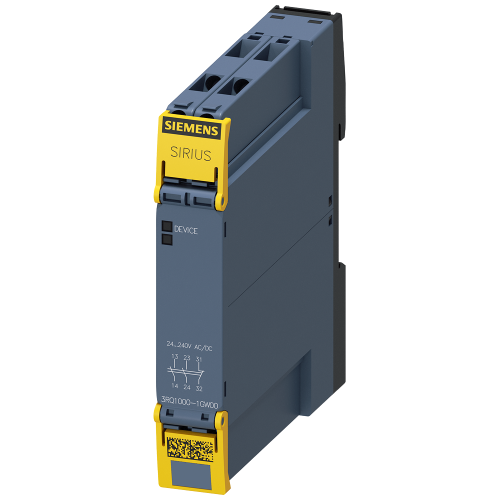

COUPLING RELAY IM

Manufacturer's No: 3RQ1000-1GW00     Manufacturer: Siemens
COUPLING RELAY IM

Availability On Request

£105.39
  • Positively driven coupling relay
  • Industrial enclosure
  • 2 Normally Open (NO) contacts
  • 1 Normally Closed (NC) contact
  • Operating voltage: 24V to 240V AC/DC
  • Safety Integrity Level 2 (SIL 2) / Performance Level c (PL c)
  • Screw terminals

Accessories

Spare part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Presentation video
Presentation video
Product video


Product

Manufacturer Material ID -
3RQ1000-1GW00
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121529

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
90 Millimetre
Drive, switching attitude -
Mono stable
Height -
100 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
2
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Screw connection
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre
With forced-guided contacts -
With LED indication -

Availability On Request

£105.39
