3RQ12001EB00

COUPLING RELAY IM

Manufacturer's No: 3RQ1200-1EB00     Manufacturer: Siemens
COUPLING RELAY IM

Availability In Stock

£119.30

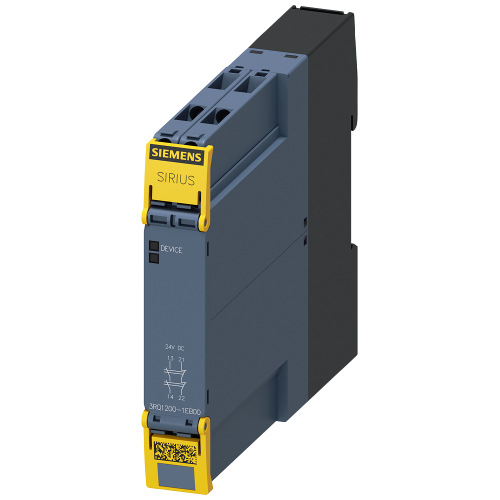

  • Force-guided coupling relay in industrial enclosure
  • 1 Normally Open (NO) contact and 1 Normally Closed (NC) contact (24 V)
  • 24 V DC supply voltage
  • SIL 3 / PL e safety integrity level
  • Screw terminal connection

Accessories

Spare part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Presentation video
Presentation video
Product video


Product

Manufacturer Material ID -
3RQ1200-1EB00
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121529

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
100 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Screw connection
Voltage type for actuating -
DC
Width -
17.5 Millimetre
With forced-guided contacts -
With LED indication -

Availability In Stock

£119.30
