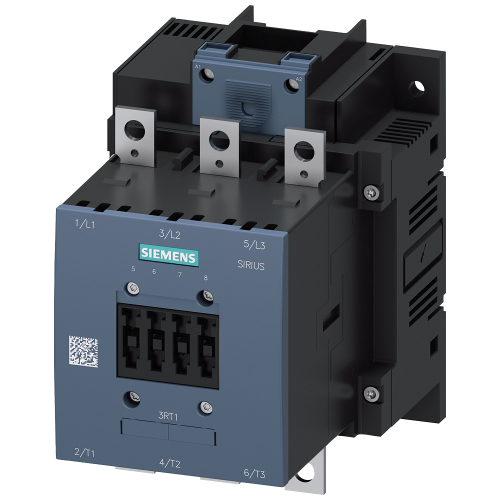

3RT10566AP30

Contactor 90 kW/400 V/AC-3e, AC (40-60 Hz)/DC operation 220-240 V UC without auxiliary contacts

Manufacturer's No: 3RT1056-6AP30     Manufacturer: Siemens
Contactor 90 kW/400 V/AC-3e, AC (40-60 Hz)/DC operation 220-240 V UC without auxiliary contacts

Availability On Request

£702.57
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 185 A, 90 kW / 400 V AC (50-60 Hz) / DC Uc: 220-240 V
  • 3-pole configuration without auxiliary contacts
  • Drive type: conventional
  • Main circuit connection: busbar
  • Control and auxiliary circuit connection: screw terminal

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request

Spare part

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Product video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1056-6AP30
Net Weight -
3.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Modular version -
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
220 Volt
Rated control supply voltage at AC 60 Hz -
220 Volt
Rated control supply voltage at DC -
220 Volt
Rated operation current Ie at AC-1, 400 V -
215 Ampere
Rated operation current Ie at AC-3, 400 V -
185 Ampere
Rated operation current Ie at AC-4, 400 V -
160 Ampere
Rated operation power at AC-3, 400 V -
90 Kilowatt
Rated operation power at AC-4, 400 V -
90 Kilowatt
Rated operation power NEMA -
110.3248125 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC

Availability On Request

£702.57
