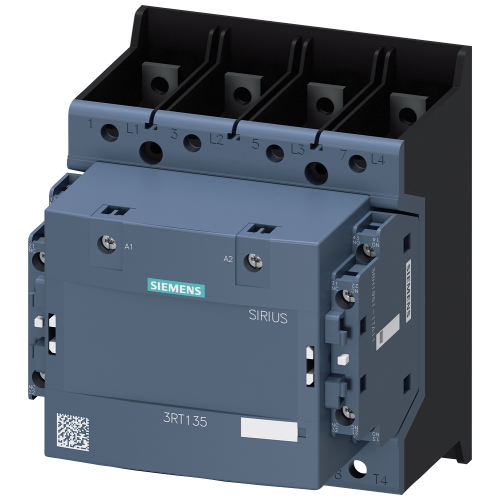

3RT13556AR36

Contactor, AC-1, 200 A/400 V/40 °C, S6, 4-pole, 250-500 V AC/DC, 2 NO+2 NC

Manufacturer's No: 3RT1355-6AR36     Manufacturer: Siemens
Contactor, AC-1, 200 A/400 V/40 °C, S6, 4-pole, 250-500 V AC/DC, 2 NO+2 NC

Availability On Request

£742.34
  • Contactor for AC-1 applications
  • Rated at 200 A and 400 V at 40°C
  • 4-pole design
  • Operating voltage range of 250-500 V AC/DC
  • Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC) contacts
  • Connection options: Connection rail or screw terminal

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request
Question and Answer (Q&A video)
Instructional video
Presentation video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1355-6AR36
Net Weight -
1.93kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
250 Volt
Rated control supply voltage Us at AC 60HZ -
250 Volt
Rated control supply voltage Us at DC -
250 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
250 Volt
Rated control supply voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at DC -
250 Volt
Rated operation current Ie at AC-1, 400 V -
200 Ampere
Rated operation current Ie at AC-3, 400 V -
140 Ampere
Rated operation power at AC-3, 400 V -
75 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC
