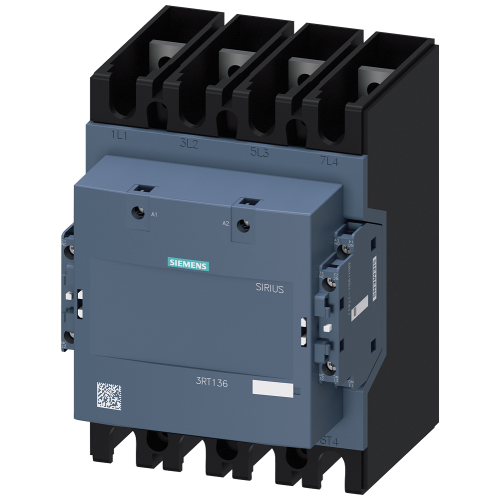

3RT13636AE36

Contactor, AC-1, 275 A/400 V/40 °C, S10, 4-pole, 24-60 V AC, 20-60 V DC, 2 NO+2 NC

Manufacturer's No: 3RT1363-6AE36     Manufacturer: Siemens
Contactor, AC-1, 275 A/400 V/40 °C, S10, 4-pole, 24-60 V AC, 20-60 V DC, 2 NO+2 NC

Availability On Request

£1,450.35
  • Contactor type: AC-1
  • Rated current: 275 A
  • Rated voltage: 400 V
  • Ambient temperature: 40°C
  • Configuration: 4-pole
  • Control voltage: 24-60 V AC, 20-60 V DC
  • Contacts: 2 normally open (NO) + 2 normally closed (NC)
  • Connection type: Rail/screw terminal

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request
Question and Answer (Q&A video)
Instructional video
Presentation video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1363-6AE36
Net Weight -
4.04kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
275 Ampere
Rated operation current Ie at AC-3, 400 V -
190 Ampere
Rated operation power at AC-3, 400 V -
90 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC

Availability On Request

£1,450.35
