3RT14816AF36

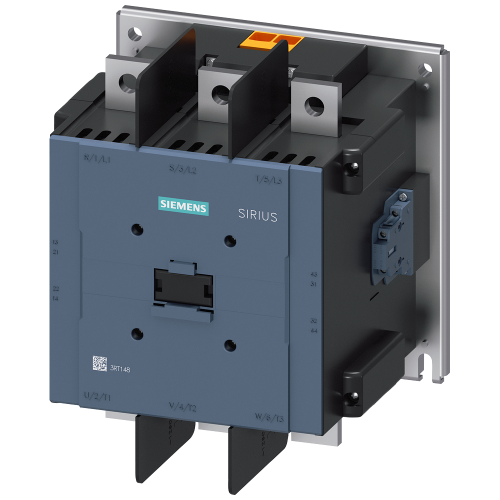

Contactor, 900A/AC-1

Manufacturer's No: 3RT1481-6AF36     Manufacturer: Siemens
Contactor, 900A/AC-1

Availability On Request

£4,900.00
  • Power contactor for AC-1 applications
  • 3-pole configuration
  • Rated at 900 A and 690 V
  • Operating temperature of 40°C
  • Control voltage: 110-127 V AC (50-60 Hz)
  • Conventional auxiliary contacts: 2 NO + 2 NC
  • Main circuit connection: busbar
  • Auxiliary circuit connection: screw terminal

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request

Spare part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1481-6AF36
Net Weight -
23.10kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
KR
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-3, 400 V -
- Ampere
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
900 Ampere
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC

Availability On Request

£4,900.00
