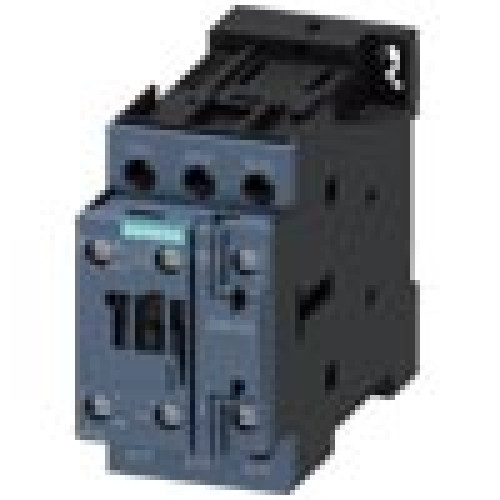

3RT20281XF400LA2

traction contactor, AC-3e/AC-3, 38 A, 18.5 kW / 400 V, 3-pole, 110 V DC, 0.7-1.25* Uc, solid-state operating mechanism, with integ

Manufacturer's No: 3RT2028-1XF40-0LA2     Manufacturer: Siemens
traction contactor, AC-3e/AC-3, 38 A, 18.5 kW / 400 V, 3-pole, 110 V DC, 0.7-1.25* Uc, solid-state operating mechanism, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, fram

Availability On Request

£229.99
  • Traction Contactor
  • AC-3e/AC-3
  • 38 A
  • 18.5 kW / 400 V
  • 3-pole
  • 110 V DC
  • 0.7-1.25* Uc
  • Solid-state operating mechanism
  • Integrated varistor
  • Auxiliary contacts: 1 NO + 1 NC

Read more

  • Screw terminal
  • Frame size: S0

Accessories

Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2028-1XF40-0LA2
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
110 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at DC -
110 Volt
Rated operation current Ie at AC-1, 400 V -
50 Ampere
Rated operation current Ie at AC-3, 400 V -
38 Ampere
Rated operation current Ie at AC-4, 400 V -
22 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Rated operation power at AC-4, 400 V -
11 Kilowatt
Rated operation power NEMA -
18.38746875 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
