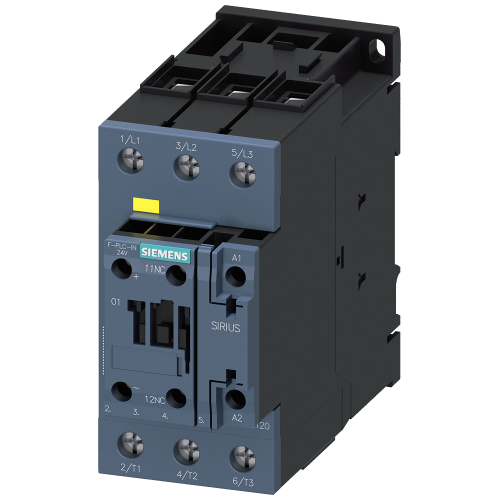

3RT20371SF30

Cont. AC-3, 65A, AC/DC 83-155V, F-PLC-IN

Manufacturer's No: 3RT2037-1SF30     Manufacturer: Siemens
Cont. AC-3, 65A, AC/DC 83-155V, F-PLC-IN

Availability On Request

£391.71
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 65 A
  • Suitable for 30 kW at 400 V
  • 3-pole configuration
  • Operating voltage range of 83-150 V AC/DC
  • Frequency compatibility: 50/60 Hz
  • Features integrated varistor for protection
  • Equipped with 1 normally closed auxiliary contact
  • Utilizes screw terminals for connections
  • Size: S2

Read more

  • Designed for F-PLC-IN applications

Accessories

Question and Answer (Q&A video)
Presentation video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2037-1SF30
Net Weight -
1.13kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121529

Technical Specification

Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
83 Volt
Rated control supply voltage at AC 60 Hz -
83 Volt
Rated control supply voltage at DC -
83 Volt
Rated operation current Ie at AC-1, 400 V -
80 Ampere
Rated operation current Ie at AC-3, 400 V -
65 Ampere
Rated operation current Ie at AC-4, 400 V -
55 Ampere
Rated operation power at AC-3, 400 V -
30 Kilowatt
Rated operation power NEMA -
36.7749375 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC

Availability On Request

£391.71
