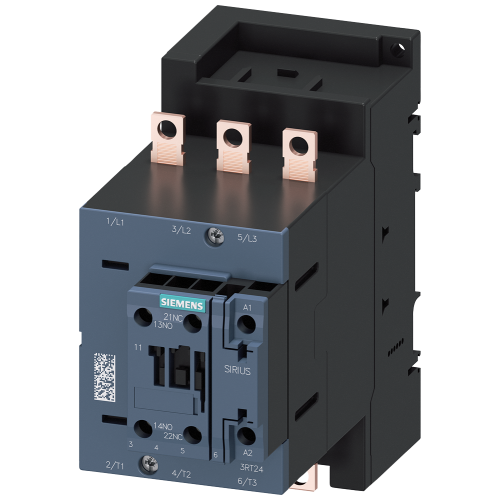

3RT24466NB30

contactor AC-1, 140 A, 690 V / 40 °C, 3-pole, 20-33 V AC/DC, 50/60 Hz, with integrated varistor, auxiliary contacts: 1

Manufacturer's No: 3RT2446-6NB30     Manufacturer: Siemens
contactor AC-1, 140 A, 690 V / 40 °C, 3-pole, 20-33 V AC/DC, 50/60 Hz, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, main circuit: without box terminal, control and auxiliary circuit:

Availability On Request

£384.42
  • Contactor Type: AC-1
  • Current Rating: 140 A
  • Voltage Rating: 690 V
  • Temperature Rating: 40 °C
  • Number of Poles: 3-pole
  • Control Voltage: 20-33 V AC/DC
  • Frequency: 50/60 Hz
  • Integrated Varistor: Yes
  • Auxiliary Contacts: 1 NO + 1 NC
  • Main Circuit Terminal: Without box terminal

Read more

  • Control and Auxiliary Circuit Terminal: Screw terminal
  • Size: S3

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2446-6NB30
Net Weight -
1.82kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121529

Technical Specification

Number of main contacts as normally open contact -
-
Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated operation current Ie at AC-1, 400 V -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Type of electrical connection of main circuit -
UN
Voltage type for actuating -
UN
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Rated operation current Ie at AC-3, 400 V -
95 Ampere
Rated operation power at AC-3, 400 V -
45 Kilowatt

Availability On Request

£384.42
