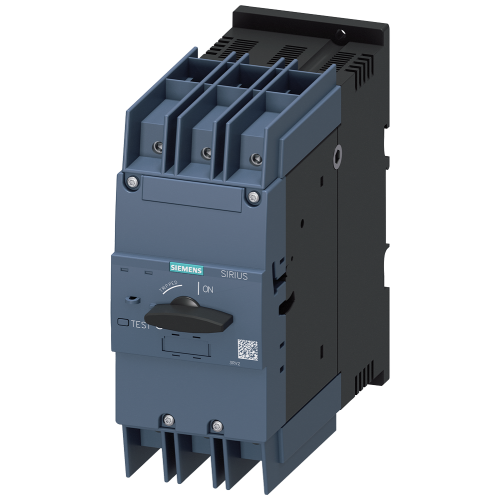

3RV27425DD10

Circuit breaker, S3, system protection, UL 489, CSA C22.2 No. 5-02, short-circuit release 325 A

Manufacturer's No: 3RV2742-5DD10     Manufacturer: Siemens
Circuit breaker, S3, system protection, UL 489, CSA C22.2 No. 5-02, short-circuit release 325 A

View 3D

Availability In Stock

£316.16
  • Circuit breaker size: S3
  • Approval: UL 489, CSA C22.2 No.5-02
  • A-release: 25 A
  • N-release: 325 A
  • Terminal type: Screw

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2742-5DD10
Net Weight -
2.25kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Overload release current setting -
- Ampere
Number of auxiliary contacts as change-over contact -
-
Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP20
Rated voltage -
20 Volt
Position of connection for main current circuit -
Other
Type of control element -
Toggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
100 kiloampere
Adjustment range undelayed short-circuit release -
325 Ampere
Suitable for DIN rail (top hat rail) mounting -
DIN rail (top hat rail) mounting optional -
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Depth -
176 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
170 Millimetre
Number of poles -
3
Rated operating voltage -
600 Volt
Rated permanent current Iu -
25 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
70 Millimetre

Availability In Stock

£316.16
