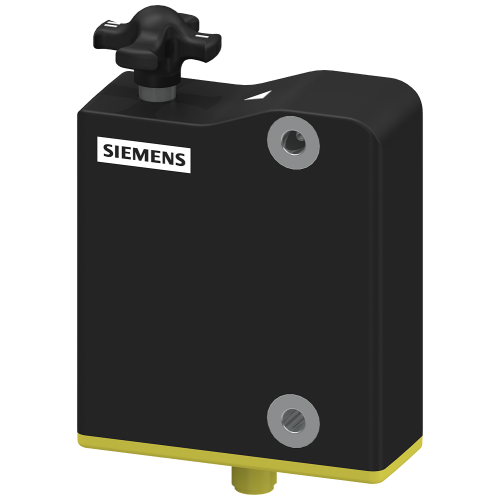

3SE64151BB01

Safety switch, plastic, closed-circuit principle, actuator monitoring, 24 V

Manufacturer's No: 3SE6415-1BB01     Manufacturer: Siemens
Safety switch, plastic, closed-circuit principle, actuator monitoring, 24 V

Availability On Request

£761.61
  • RFID safety switch with tumbler
  • Plastic material
  • Quiescent current principle
  • Tumbler monitoring
  • 24 V DC power supply
  • Auxiliary release feature
  • IP69 rating for high protection
  • Locking force of 1150 N
  • Family-encoded for security
  • Diagnostics output available

Read more

  • M12 plug 8-pole connection
  • 3 LEDs for displaying operating states
  • 3 directions of actuation
  • Latching force with turnstile adjustable: 25 N or 50 N
  • Hygienic design
  • Actuator 3SE6410-1AC01 to be ordered separately

Selectable mandatory product

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE6415-1BB01
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Suitable for safety functions -
Ambient temperature -
0 Degrees celsius
Switching distance -
2 Millimetre
Number of semiconductor outputs with signalling function -
1
Number of protected semiconductor outputs -
2
Protected switch distance OFF -
20 Millimetre
Protected switch distance ON -
1 Millimetre
Max. output current at protected output -
250 Milliampere
Min. output current -
0.5 Milliampere
Cross-/short circuit identification possible -
Rated supply voltage at AC 50 Hz -
20.4 Volt
Rated supply voltage at AC 60 Hz -
20.4 Volt
Rated supply voltage at DC -
20.4 Volt
Height of sensor -
35 Millimetre
Ambient temperature during operating -
0 Degrees celsius
Clamping force -
1500 Newton
Construction type housing -
Special construction
Length of sensor -
120 Millimetre
Type of guard locking -
Quiescent current principle
Width sensor -
87.5 Millimetre
With auxiliary release -
With status indication -

Availability On Request

£761.61
