3SU10011BA300AA0-ZY13

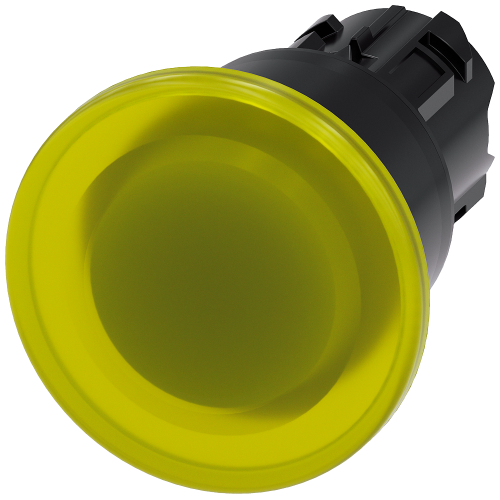

Illuminated mushroom pushbutton, 22 mm, round, plastic, yellow, 40mm, latching, pull-to-unlatch mechanism, with laser labeling, sy

Manufacturer's No: 3SU1001-1BA30-0AA0-ZY13     Manufacturer: Siemens
Illuminated mushroom pushbutton, 22 mm, round, plastic, yellow, 40mm, latching, pull-to-unlatch mechanism, with laser labeling, symbol number accor...

Availability On Request

£22.12
  • Illuminated mushroom pushbutton
  • 22 mm round plastic design in yellow
  • 40mm in size with latching mechanism
  • Pull-to-unlatch mechanism for easy operation
  • Laser labeling with symbol number according to ISO 7000 or IEC 60417
  • Large actuator for convenient operation using the whole hand
  • Snap-on concept for easy one-handed installation without special tools
  • Suitable for industrial and outdoor use with high degree of protection
  • Can withstand cleaning with high-pressure jet
  • Compatible with PROFINET, AS-Interface, or IO-Link for easy controller connection

Read more

  • Online Configurator for selecting and ordering devices, enclosures, and labels
  • Available in different versions: 30/40/60 mm mushroom diameter, various colors, illuminated/non-illuminated, latching/momentary contact operation, pull-to-unlatch/rotate-to-unlatch mechanism
  • Note: Holders and modules need to be ordered separately
Instructional video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SU1001-1BA30-0AA0-ZY13
Net Weight -
0.02kg

Additional Product Information

Country of Origin -
CN
UNSPSC -
39122233

Technical Specification

Colour button -
Yellow
Colour front ring -
Black
Construction type lens -
Round
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Diameter cap -
40 Millimetre
Height opening -
27.5 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Plastic
Suitable for illumination -
Unlocking method -
Pull-release
Width opening -
40 Millimetre
With front ring -
With lighting -

Availability On Request

£22.12
