3SU10022CF600AA0-ZY19

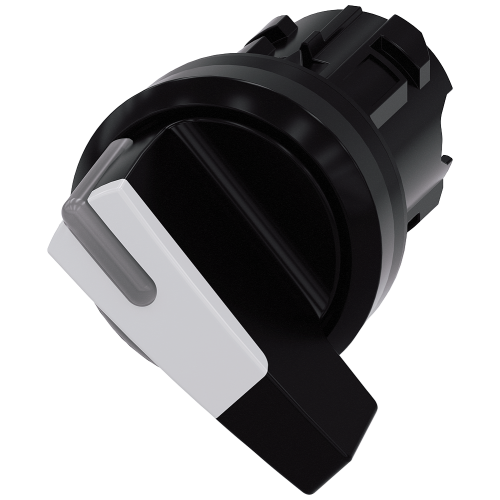

Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, long, 2 switch positions O-I, latching, actuating ang

Manufacturer's No: 3SU1002-2CF60-0AA0-ZY19     Manufacturer: Siemens
Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, long, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13...

Availability On Request

£11.25
  • Selector switch
    • 22 mm round plastic design
    • White color
    • Illuminable with laser labeling
    • Long handle with 2 switch positions (O-I)
    • Latching mechanism with 90° actuating angle
    • Customizable inscription or symbol using SIRIUS ACT configurator
    • Suitable for industrial and outdoor use with high degree of protection
    • Easy installation with innovative snap-on concept
    • Compatible with PROFINET, AS-Interface, and IO-Link for controller connection
    • Available in various colors, switching positions, and handle lengths
    • Can be illuminated (retrofitting possible)
    • Requires separate order for holders and modules
    • Part of Siemens' SIRIUS ACT portfolio for control and signaling
    • Offers global product approvals and modern design lines in metal and plastic
    • Provides extensive documentation and online configurator for easy selection and ordering
Instructional video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SU1002-2CF60-0AA0-ZY19
Net Weight -
0.03kg

Additional Product Information

Country of Origin -
DE
UNSPSC -
39122233

Technical Specification

Colour control element -
White
Colour front ring -
Black
Colour indicator light cap -
White
Degree of protection (IP), front side -
IP67/IP69K
Height opening -
28.8 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Plastic
Number of switch positions -
2
Suitable for illumination -
Width opening -
44.8 Millimetre
With front ring -

Availability On Request

£11.25
