3SU10501AD200AA0-ZY13

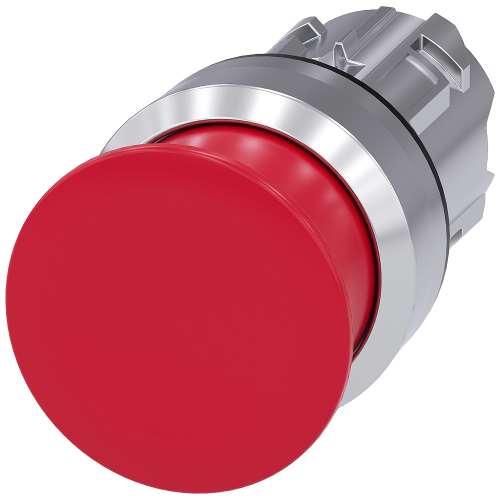

Mushroom pushbutton, 22 mm, round, metal, shiny, red, 30 mm, momentary contact type, with laser labeling, symbol number according

Manufacturer's No: 3SU1050-1AD20-0AA0-ZY13     Manufacturer: Siemens
Mushroom pushbutton, 22 mm, round, metal, shiny, red, 30 mm, momentary contact type, with laser labeling, symbol number according to, ISO 7000 or I...

Availability On Request

£14.54
  • Mushroom pushbutton
  • 22 mm diameter, round
  • Made of shiny red metal
  • 30 mm actuator
  • Momentary contact type
  • Laser labeling with symbol number according to ISO 7000 or IEC 60417
  • Unique portfolio of pushbuttons and signaling devices under the brand name SIRIUS ACT by Siemens
  • Three design lines: rugged genuine metal and high-grade plastic
  • Easy installation with innovative snap-on concept, can be done with one hand and no special tools required
  • Suitable for industrial and outdoor use with high degree of protection

Read more

  • Can withstand cleaning with high-pressure jet, resistant to dust, oils, and caustic solutions
  • Can be connected to controller via PROFINET, AS-Interface, or IO-Link for reduced wiring time and effort
  • Online Configurator available for selecting and ordering individual devices, enclosures, and labels
  • Versions available: 30/40/60 mm mushroom diameter, various colors, illuminated/non-illuminated, latching/momentary contact operation, pull-to-unlatch/rotate-to-unlatch mechanism
  • Holders and modules need to be ordered separately
Instructional video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SU1050-1AD20-0AA0-ZY13
Net Weight -
0.04kg

Additional Product Information

Country of Origin -
CN
UNSPSC -
39122233

Technical Specification

Colour button -
Red
Construction type lens -
Round
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Diameter cap -
30 Millimetre
Height opening -
27.5 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Metal
Width opening -
30 Millimetre
With front ring -

Availability On Request

£14.54
