3SU10511BA000AA0-ZY11

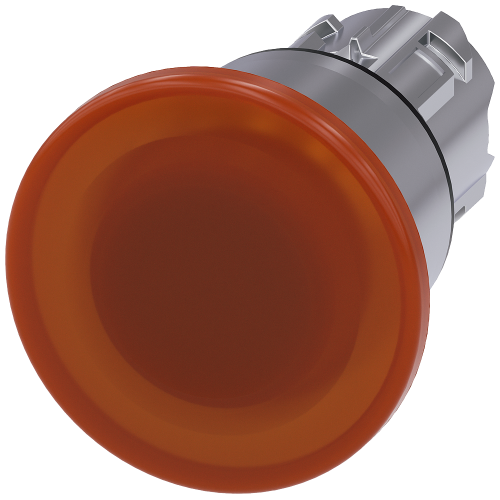

Illuminated mushroom pushbutton, 22 mm, round, metal, shiny, amber, 40 mm, latching, pull-to-unlatch mechanism, with laser labelin

Manufacturer's No: 3SU1051-1BA00-0AA0-ZY11     Manufacturer: Siemens
Illuminated mushroom pushbutton, 22 mm, round, metal, shiny, amber, 40 mm, latching, pull-to-unlatch mechanism, with laser labeling, upper case

Availability On Request

£24.58
  • Illuminated mushroom pushbutton - 22 mm diameter - Round shape - Metal material - Shiny amber color - 40 mm in height - Latching with pull-to-unlatch mechanism - Laser labeling - Upper case design

  • SIRIUS ACT pushbuttons by Siemens - Large actuator for convenient operation - Global product approvals - Available in rugged metal and high-grade plastic - Easy snap-on installation without special tools - Suitable for industrial and outdoor use - High degree of protection - Compatible with PROFINET, AS-Interface, and IO-Link - Online Configurator for device selection and ordering - Available in various sizes, colors, and operation types

  • Versions available: - Mushroom diameter: 30/40/60 mm - Illuminated/non-illuminated - Latching/momentary contact operation - Pull-to-unlatch/rotate-to-unlatch mechanism

  • Note: Single device, holders and modules to be ordered separately

Instructional video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SU1051-1BA00-0AA0-ZY11
Net Weight -
0.05kg

Additional Product Information

Country of Origin -
CN
UNSPSC -
39122233

Technical Specification

Colour button -
Orange
Construction type lens -
Round
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Diameter cap -
40 Millimetre
Height opening -
27.5 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Metal
Suitable for illumination -
Unlocking method -
Pull-release
Width opening -
40 Millimetre
With front ring -
With lighting -

Availability On Request

£24.58
