3SU10511CD300AA0-ZY13

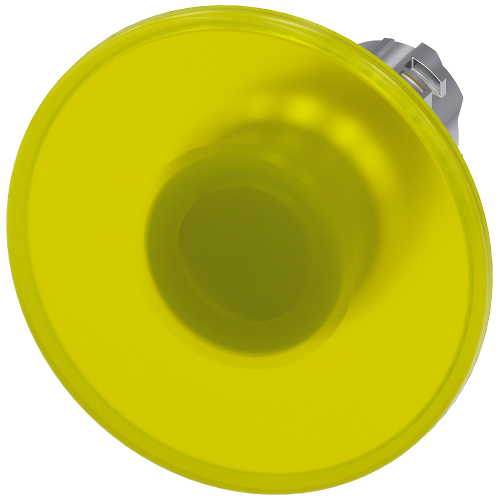

Illuminated mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 60 mm, momentary contact type, with laser labeling, symbol nu

Manufacturer's No: 3SU1051-1CD30-0AA0-ZY13     Manufacturer: Siemens
Illuminated mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 60 mm, momentary contact type, with laser labeling, symbol number according to...

Availability On Request

£14.47
  • Illuminated mushroom pushbutton - 22 mm diameter, round, metal, shiny, yellow - 60 mm height - Momentary contact type with laser labeling - Symbol number according to ISO 7000 or IEC 60417

  • SIRIUS ACT pushbuttons by Siemens - Large actuator for convenient operation with the whole hand - Unique portfolio with global product approvals - Available in rugged genuine metal and high-grade plastic - Innovative snap-on concept for easy installation without special tools

  • High degree of protection for rugged devices - Suitable for industrial and outdoor use - Resistant to dust, oils, and caustic solutions - Can withstand cleaning with high-pressure jet

  • Connectivity options - Compatible with PROFINET, AS-Interface, or IO-Link - Reduces wiring time and effort, minimizes errors, and offers flexibility

  • Online Configurator for easy device selection and ordering - Extensive documentation available - Versions available: 30/40/60 mm mushroom diameter, various colors, illuminated/non-illuminated, latching/momentary contact operation, pull-to-unlatch/rotate-to-unlatch mechanism

  • Note: Single device, holders and modules to be ordered separately

Instructional video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SU1051-1CD30-0AA0-ZY13
Net Weight -
0.05kg

Additional Product Information

Country of Origin -
DE
UNSPSC -
39122233

Technical Specification

Colour button -
Yellow
Construction type lens -
Round
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Diameter cap -
60 Millimetre
Height opening -
27.5 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Metal
Suitable for illumination -
Width opening -
60 Millimetre
With front ring -
With lighting -

Availability On Request

£14.47
