3SU10622DC600AA0-ZY11

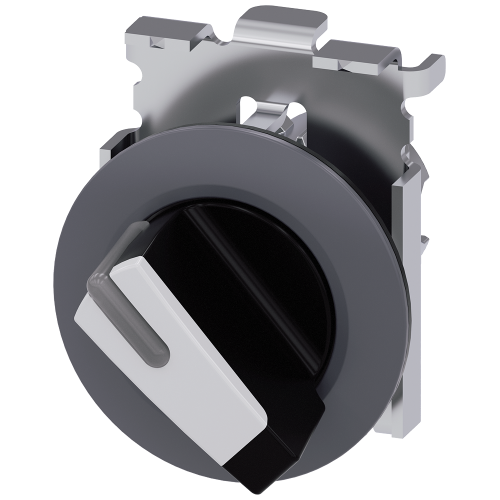

Selector switch, illuminable, 30 mm, round, Metal, matte, white, selector switch, short, front ring for flush installation, 2 swit

Manufacturer's No: 3SU1062-2DC60-0AA0-ZY11     Manufacturer: Siemens
Selector switch, illuminable, 30 mm, round, Metal, matte, white, selector switch, short, front ring for flush installation, 2 switch positions O

Availability On Request

£35.39
  • Selector switch: 30 mm round metal with matte white finish
  • Illuminable with laser labeling and momentary contact type
  • Front ring for flush installation, 2 switch positions O<I
  • Actuating angle 45°, suitable for industry and outdoor use
  • Can be connected via PROFINET, AS-Interface, or IO-Link for easy installation
  • High degree of protection allows for cleaning with high-pressure jet
  • Innovative snap-on concept for easy one-handed installation without special tools
  • Available in several colors with 2-4 switching positions and short/long selector or rotary knob
  • Latching/momentary contact operation, lighting can be retrofitted
  • Online Configurator available for convenient device selection and ordering

Read more

  • Extensive documentation provided including manual, 3D data, and terminal diagram
  • Single device, holders and modules to be ordered separately
Instructional video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SU1062-2DC60-0AA0-ZY11
Net Weight -
0.06kg

Additional Product Information

Country of Origin -
DE
UNSPSC -
39122233

Technical Specification

Colour control element -
White
Colour indicator light cap -
White
Degree of protection (IP), front side -
IP67/IP69K
Height opening -
22.1 Millimetre
Hole diameter -
30.5 Millimetre
Material front ring -
Metal
Number of switch positions -
2
Suitable for illumination -
Width opening -
38 Millimetre
With front ring -

Availability On Request

£35.39
