3SU11501GB203PW0

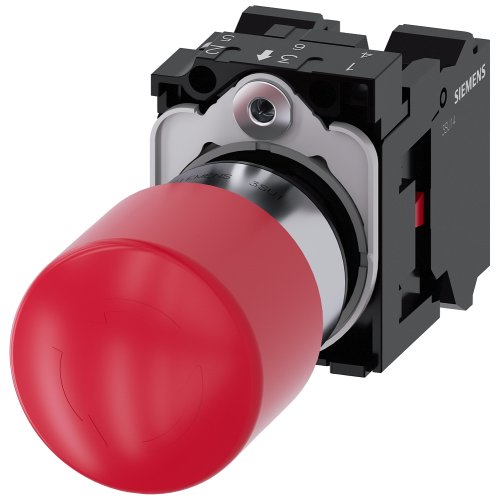

EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, red, 1 NC 1 NC, spring-loaded terminals

Manufacturer's No: 3SU1150-1GB20-3PW0     Manufacturer: Siemens
EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, red, 1 NC 1 NC, spring-loaded terminals

Availability On Request

£42.85
  • Emergency stop mushroom pushbutton
    • 22 mm round metal design
    • Shiny red color
    • Positive latching mechanism
    • Rotate-to-unlatch feature
    • Complies with DIN EN ISO 13850 standards
    • Includes yellow washer for emergency stop
    • 60 mm in diameter
    • Does not have any inscription
    • Equipped with a holder
    • Features 1 normally closed (NC) contact
    • Spring-loaded terminal
    • Designed for front plate mounting

Accessories

Component part

Presentation video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SU1150-1GB20-3PW0
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39122216

Technical Specification

Colour front ring -
UN
Type of electric connection -
UN
Material front ring -
UN
Construction type lens -
UN
Degree of protection (IP) -
IP67/IP69K
Colour button -
Red
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
46.4 Millimetre
Hole diameter -
22.3 Millimetre
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Type of button -
Mushroom
Width opening -
60 Millimetre

Availability On Request

£42.85
