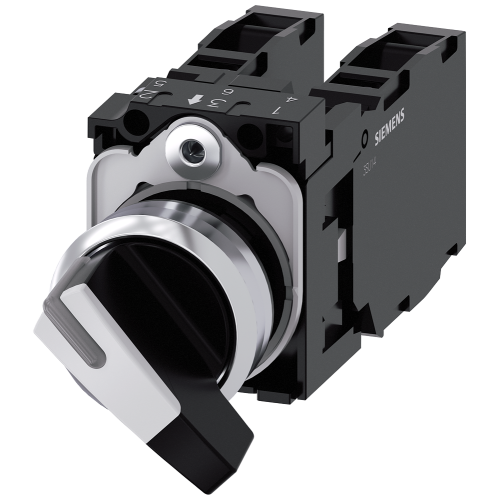

3SU11502CF601NA0

Selector switch, O-I, black, white

Manufacturer's No: 3SU1150-2CF60-1NA0     Manufacturer: Siemens
Selector switch, O-I, black, white

Availability On Request

£30.97
  • Toggle switch
  • 22 mm round metal design
  • Shiny white knob
  • Long toggle with 2 switch positions: O (off) and I (on)
  • Latching mechanism
  • Actuating angle of 90 degrees
  • Switch position: 10:30h to 13:30h
  • Includes holder
  • 1 Normally Open (NO) contact
  • Screw terminal connection

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1150-2CF60-1NA0
Net Weight -
0.12kg

Additional Product Information

Country of Origin -
DE
Export Control Regulations -
/ ECCN:
UNSPSC -
39122216

Technical Specification

Type of control element -
UN
Colour front ring -
Other
Degree of protection (IP) -
IP67/IP69K
Colour button -
White
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
28.8 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
2
Number of switch positions -
3
Suitable for illumination -
Supply voltage -
5 Volt
Type of electric connection -
Screw connection
Width opening -
32.3 Millimetre
With front ring -

Availability On Request

£30.97
