3SU11511GB203CW0

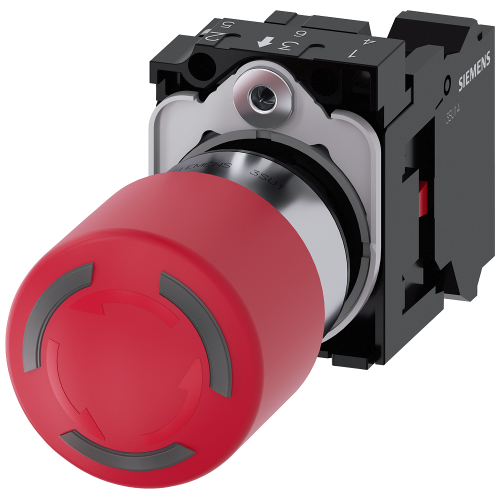

EMERG. STOP mushroom pushb., 30mm, red

Manufacturer's No: 3SU1151-1GB20-3CW0     Manufacturer: Siemens
EMERG. STOP mushroom pushb., 30mm, red

Availability On Request

£51.51
  • Emergency stop mushroom pushbutton
  • 22 mm round metal button
  • Shiny red finish
  • Positive latching mechanism
  • Complies with EN ISO 13850 standards
  • Rotate-to-unlatch feature
  • Yellow washer without inscription
  • Includes holder and 1 NC contact
  • Spring-loaded terminal
  • Front plate mounting

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1151-1GB20-3CW0
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39122216

Technical Specification

Colour front ring -
UN
Type of electric connection -
UN
Material front ring -
UN
Construction type lens -
UN
Supply voltage lamp -
- Volt
Degree of protection (IP) -
IP67/IP69K
Colour button -
Red
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
46.4 Millimetre
Hole diameter -
22.3 Millimetre
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
0
Suitable for illumination -
Type of button -
Mushroom
Width opening -
60 Millimetre

Availability On Request

£51.51
