3SU11522BF201MA0

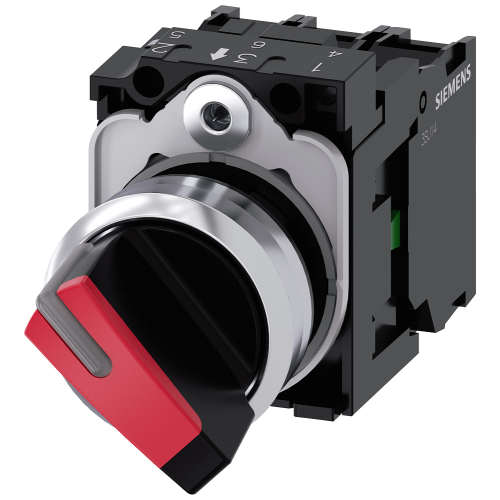

Selector switch, illuminated, 22 mm, round, metal, high gloss, white, latching, 1 NO + 1 NC

Manufacturer's No: 3SU1152-2BF20-1MA0     Manufacturer: Siemens
Selector switch, illuminated, 22 mm, round, metal, high gloss, white, latching, 1 NO + 1 NC

Availability On Request

£37.86
  • Toggle switch
  • Illuminated LED red
  • 22 mm round metal shiny red knob
  • Short with holder
  • 2 switch positions: O-I
  • Latching
  • Actuating angle: 90°
  • 1 NO, 1 NC
  • Voltage: 24 V AC/DC
  • Screw terminal

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1152-2BF20-1MA0
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
/ ECCN:
UNSPSC -
39122216

Technical Specification

Colour front ring -
Other
Degree of protection (IP) -
IP67/IP69K
With light source -
Colour button -
Red
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
28.8 Millimetre
Hole diameter -
22.3 Millimetre
Light source included -
Material front ring -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of switch positions -
2
Suitable for illumination -
Supply voltage -
500 Volt
Type of control element -
Toggle
Type of electric connection -
Screw connection
Width opening -
32.3 Millimetre
With front ring -

Availability On Request

£37.86
