3SX51100BK

SIRIUS 3SE5 position switch, plastic, service box, TANOS box

Manufacturer's No: 3SX5110-0BK     Manufacturer: Siemens
SIRIUS 3SE5 position switch, plastic, service box, TANOS box

Availability On Request

£277.62

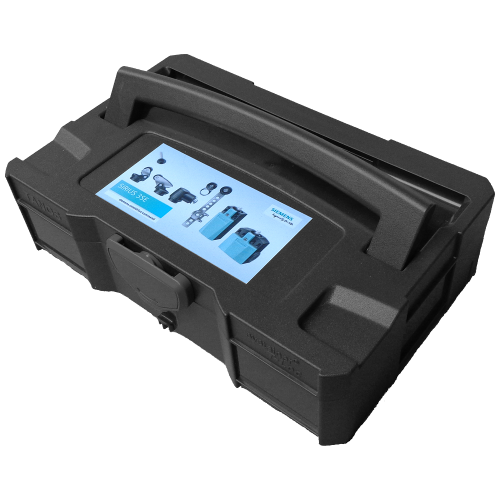

  • SIRIUS 3SE5 position switch plastic service box
  • Includes 3 basic position switches: widths of 31 mm, 40 mm, and 50 mm (3SE5232-0CC05, 3SE5132-0CA00, 3SE5242-0CC05)
  • Comes with 19 different actuator heads and accessories
  • Accessories include M12 plug 4-pole 3SY3127 and yellow cover with LED 3SE5230-1AA00-1AG0 for 31 mm
  • Includes SIRIUS 3SE brochure in German and English

Component part

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3SX5110-0BK
Net Weight -
1.18kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39122216

Technical Specification

Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
33 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
75.7 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
31 Millimetre

Availability On Request

£277.62
