3UG45812AW31

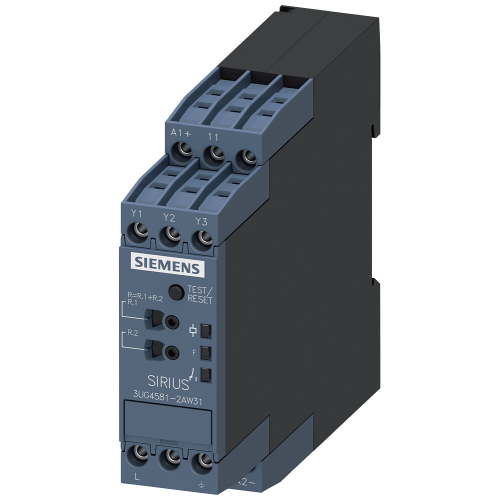

Analogically adjustable insulation monitoring relay, up to 400 V AC, 50-60 Hz, 1 CO, 24-240 V AC/DC, spring-loaded terminal

Manufacturer's No: 3UG4581-2AW31     Manufacturer: Siemens
Analogically adjustable insulation monitoring relay, up to 400 V AC, 50-60 Hz, 1 CO, 24-240 V AC/DC, spring-loaded terminal

Availability On Request

£253.19
  • Insulation monitoring relay for ungrounded (IT) networks
  • Suitable for networks up to 400 V AC, 50-60 Hz
  • Measuring range: 1-100 kohm
  • Supply voltage: 24-240 V AC/DC
  • Compact size: 22.5 mm
  • Features 1 changeover contact
  • Equipped with spring-loaded terminals (push-in)


Product

Manufacturer Material ID -
3UG4581-2AW31
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121529

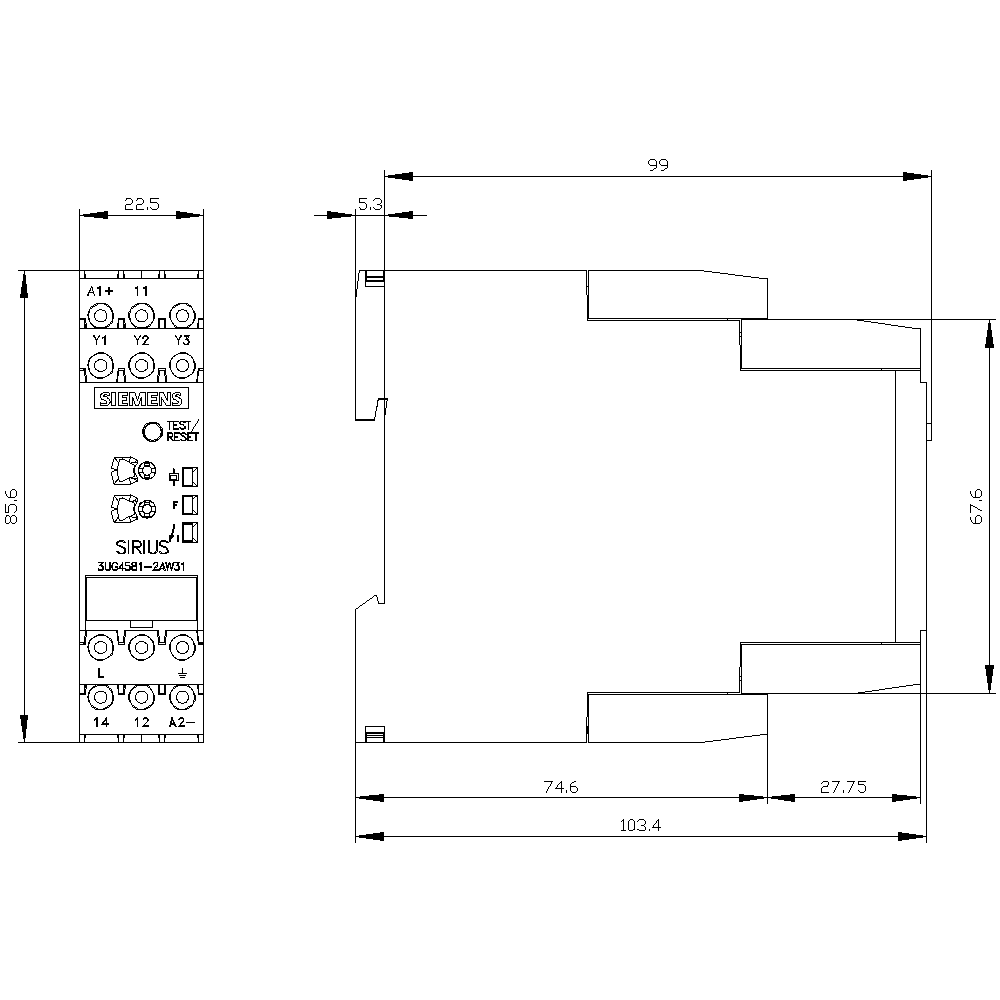

Technical Specification

Depth -
100 Millimetre
Error registration possible -
Height -
78 Millimetre
Line capacity -
10 Micro-Farad
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value impedance 1 -
1 Kilo-Ohm
Type of electric connection -
Spring clamp connection
Width -
22.5 Millimetre

Availability On Request

£253.19
