3VA15106EF420BG0

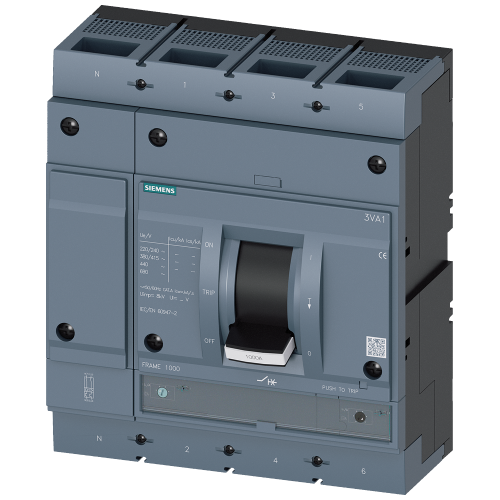

Circuit breaker 3VA1 IEC frame 1000 breaking capacity class H Icu=70 kA @ 415 V

Manufacturer's No: 3VA1510-6EF42-0BG0     Manufacturer: Siemens
Circuit breaker 3VA1 IEC frame 1000 breaking capacity class H Icu=70 kA @ 415 V

Availability On Request

£4,267.15
  • Circuit Breaker 3VA1 IEC Frame 1000
  • Breaking Capacity: Icu=70 kA @ 415 V
  • 4-pole, Line Protection TM240, ATAM
  • Rated Current: In=1000 A
  • Overload Protection: Ir=700 A...1000 A
  • Short-Circuit Protection: Ii=5...10 x In
  • Undervoltage Release: 24 V DC
  • 1 Auxiliary Switch HP
  • 1 Trip Alarm Switch HQ
  • N Conductor Unprotected Nut Keeper Kit
Question and Answer (Q&A video)
Product video
Instructional video
Question and Answer (Q&A video)
Instructional video
Product video


Product

Manufacturer Material ID -
3VA1510-6EF42-0BG0
Net Weight -
13.07kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
5000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
2
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
700 Ampere
Position of connection for main current circuit -
Front
Power loss -
332.5 Watt
Rated permanent current Iu -
1000 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
70 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection
With integrated under voltage release -

Availability On Request

£4,267.15
