3VA15807MH320AA0

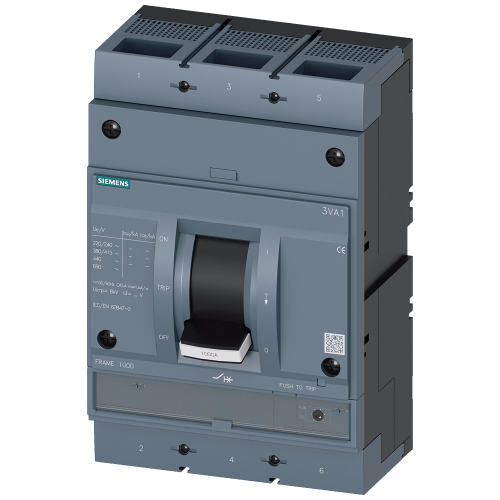

Circuit breaker 3VA1 IEC frame 1000 breaking capacity class C Icu=110 kA @ 415 V

Manufacturer's No: 3VA1580-7MH32-0AA0     Manufacturer: Siemens
Circuit breaker 3VA1 IEC frame 1000 breaking capacity class C Icu=110 kA @ 415 V

Availability On Request

£2,480.82
  • Circuit Breaker: 3VA1 IEC Frame 1000
  • Breaking Capacity: Class C, Icu = 110 kA @ 415 V
  • Configuration: 3-pole
  • Starter Protection: TM120M, AM
  • Rated Current: In = 800 A
  • Overload Protection: Not included
  • Short-Circuit Protection: Ii = 6-12 x In
  • Includes Nut Keeper Kit

Accessories

Question and Answer (Q&A video)
Product video
Instructional video
Question and Answer (Q&A video)
Instructional video
Product video


Product

Manufacturer Material ID -
3VA1580-7MH32-0AA0
Net Weight -
13.90kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Overload release current setting -
- Ampere
Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range undelayed short-circuit release -
4800 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
210 Watt
Rated permanent current Iu -
800 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£2,480.82
