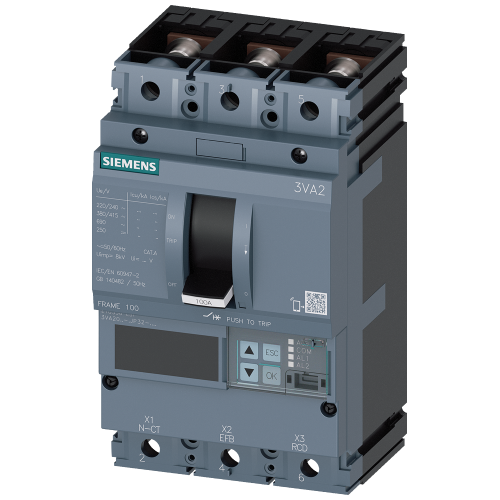

circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415V 3-pole, line protection ETU550, LSI, In=100A overload protection Ir=40A...100A short-circuit protection Isd=0.6..10x In, Ii

3VA20105JP320AA0

circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415V 3-pole, line protection ETU550, LSI, In=100A overload protection Ir=40A...100A short-circuit protection Isd=0.6..10x In, Ii

Produced by Siemens

Availability Back Order

Price - £838.83
circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415V 3-pole, line protection ETU550, LSI, In=100A overload protection Ir=40A...100A short-circuit protection Isd=0.6..10x In, Ii=1.5..12x In N conductor protection optionally with external current transformer, up to 160% nut keeper kit
No alternatives available for this product.
Product
Manufacturer Material ID -
3VA2010-5JP32-0AA0
Net Weight -
2.13kg
Additional Product Information
Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Rated permanent current Iu -
100 Ampere
Number of poles -
3
Overload release current setting -
40 Ampere
Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
60 Ampere
Adjustment range undelayed short-circuit release -
150 Ampere
