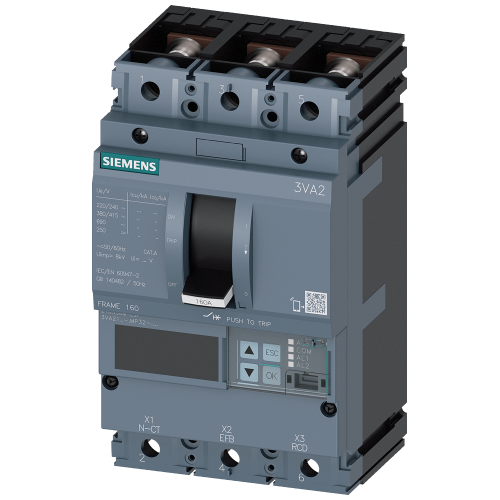

3VA21637MP320AA0

circuit breaker 3VA2 IEC Frame 160 breaking capacity class C Icu=110 kA @ 415 V 3-pole, motor protection ETU550M, LSI, In=63 A ov

Manufacturer's No: 3VA2163-7MP32-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 160 breaking capacity class C Icu=110 kA @ 415 V 3-pole, motor protection ETU550M,  LSI, In=63 A overload protection...

Availability On Request

£678.72
  • Circuit breaker 3VA2 IEC Frame 160
  • Breaking capacity class C: Icu = 110 kA @ 415 V
  • 3-pole with motor protection ETU550M, LSI
  • Rated current: In = 63 A
  • Overload protection: Ir = 25 A ... 63 A
  • Short-circuit protection: ISD = 1.2 ... 15x In, Ii = 3 ... 15x In
  • Includes nut keeper kit

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2163-7MP32-0AA0
Net Weight -
2.13kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range short-term delayed short-circuit release -
75 Ampere
Adjustment range undelayed short-circuit release -
189 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
25 Ampere
Position of connection for main current circuit -
Front
Power loss -
4 Watt
Rated permanent current Iu -
63 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£678.72
