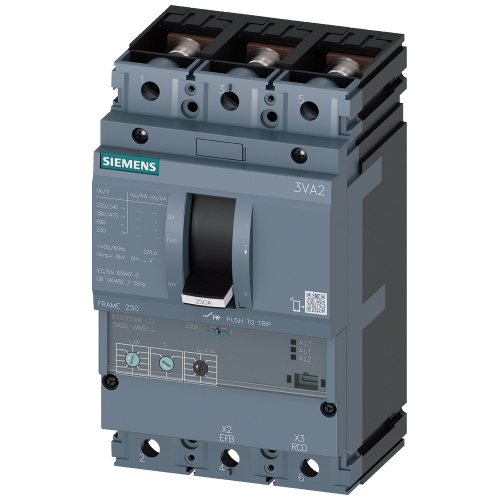

3VA22200MN320AA0

circuit breaker 3VA2 IEC Frame 250 breaking capacity class E Icu=200 kA @ 415 V 3-pole, motor protection ETU350M, LSI, In=200 A o

Manufacturer's No: 3VA2220-0MN32-0AA0     Manufacturer: Siemens

Availability Back Order

£1,143.48
  • Circuit Breaker: 3VA2 IEC Frame 250
  • Breaking Capacity: Icu = 200 kA @ 415 V
  • Configuration: 3-pole
  • Motor Protection: ETU350M
  • Overload Protection: In = 200 A, Ir = 64 A
  • Short-Circuit Protection: Isd = 3-12 x Ir, Ii = 12 x In
  • Nut Keeper Kit included
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2220-0MN32-0AA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
200 kiloampere
Adjustment range short-term delayed short-circuit release -
240 Ampere
Adjustment range undelayed short-circuit release -
2400 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
80 Ampere
Position of connection for main current circuit -
Front
Power loss -
46 Watt
Rated permanent current Iu -
200 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
200 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

£1,143.48
