3VA22255HN320LF0

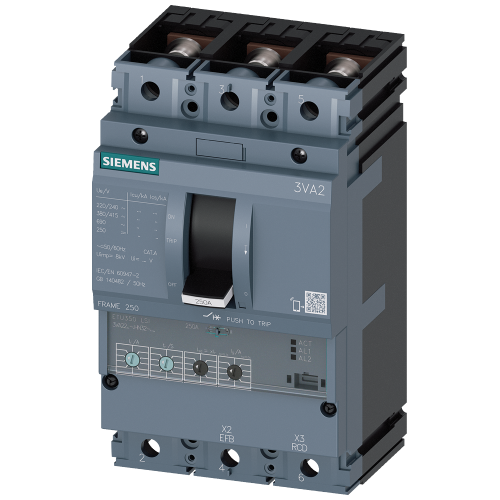

circuit breaker 3VA2 IEC Frame 250 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU350, LSI, In=250 A overl

Manufacturer's No: 3VA2225-5HN32-0LF0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 250 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU350, LSI, In=250 A overload protection Ir...

Availability On Request

£1,113.09
  • Circuit breaker 3VA2 IEC Frame 250
  • Breaking capacity class M: Icu=55 kA @ 415 V
  • 3-pole, line protection ETU350, LSI
  • In=250 A overload protection, Ir=100 A...250 A
  • Short-circuit protection: Isd=1.5...10 x Ir, Ii=10 x In
  • Universal release 24 V DC
  • 1 auxiliary switch HQ
  • 1 trip alarm switch HQ
  • Nut keeper kit included
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2225-5HN32-0LF0
Net Weight -
2.37kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
2500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
2
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
100 Ampere
Position of connection for main current circuit -
Front
Power loss -
50.5 Watt
Rated permanent current Iu -
250 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Switched-off indicator available -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection
With integrated under voltage release -

Availability On Request

£1,113.09
