3VA24408HM320AA0

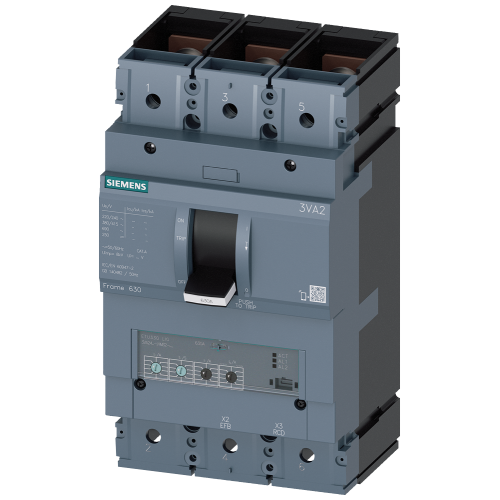

circuit breaker 3VA2 IEC Frame 630 breaking capacity class L Icu=150 kA @ 415 V 3-pole, line protection ETU330, LIG, In=400 A over

Manufacturer's No: 3VA2440-8HM32-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 630 breaking capacity class L Icu=150 kA @ 415 V 3-pole, line protection ETU330, LIG, In=400 A overload protection I...

Availability On Request

£2,380.99
  • Circuit breaker 3VA2 IEC Frame 630
  • Breaking capacity class L: Icu=150 kA @ 415 V
  • 3-pole, line protection ETU330, LIG
  • Rated current: In=400 A
  • Overload protection: Ir=160 A...400 A
  • Short-circuit protection: Ii=1.5...11 x In
  • Ground-fault protection: Ig=0.2...1 x In, tg=0.1/0.3s
  • Nut keeper kit included

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2440-8HM32-0AA0
Net Weight -
4.30kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Adjustment range undelayed short-circuit release -
600 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
160 Ampere
Position of connection for main current circuit -
Front
Power loss -
63.5 Watt
Rated permanent current Iu -
400 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
150 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection
