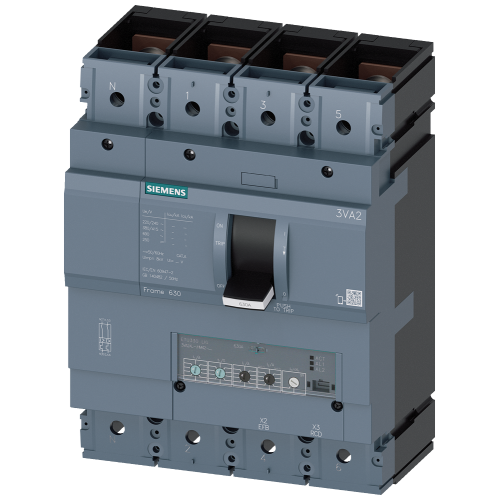

3VA24637HM420AA0

circuit breaker 3VA2 IEC Frame 630 breaking capacity class C Icu=110 kA @ 415 V 4-pole, line protection ETU330, LIG, In=630 A over

Manufacturer's No: 3VA2463-7HM42-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 630 breaking capacity class C Icu=110 kA @ 415 V 4-pole, line protection ETU330, LIG, In=630 A overload protection I...

Availability On Request

£2,848.39
  • Circuit Breaker: 3VA2 IEC Frame 630
  • Breaking Capacity: Class C, Icu = 110 kA @ 415 V
  • Configuration: 4-pole, Line Protection
  • Rated Current: In = 630 A
  • Overload Protection: Ir = 250 A...630 A
  • Short-Circuit Protection: Ii = 1.5...9 x In
  • Neutral Conductor Protection: Adjustable (OFF, 50%, 100%)
  • Ground-Fault Protection: Ig = 0.2...1 x In, tg = 0.1/0.3s
  • Accessories: Nut Keeper Kit

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2463-7HM42-0AA0
Net Weight -
6.69kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range undelayed short-circuit release -
945 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
250 Ampere
Position of connection for main current circuit -
Front
Power loss -
162 Watt
Rated permanent current Iu -
630 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£2,848.39
