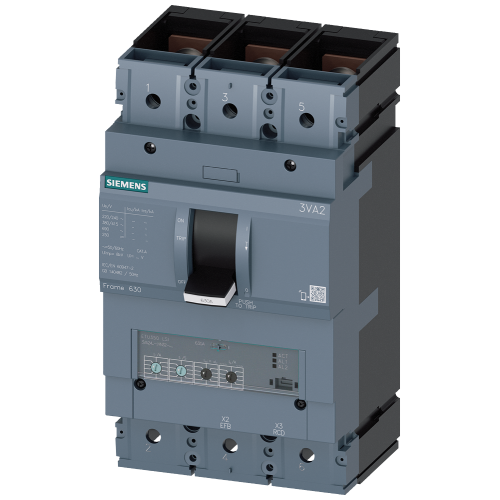

3VA24638HN320AA0

circuit breaker 3VA2 IEC Frame 630 breaking capacity class L Icu=150 kA @ 415 V 3-pole, line protection ETU350, LSI, In=630 A over

Manufacturer's No: 3VA2463-8HN32-0AA0     Manufacturer: Siemens

Availability Back Order

£2,207.86
  • Circuit Breaker: 3VA2 IEC Frame 630
  • Breaking Capacity: Class L, Icu=150 kA @ 415 V
  • Configuration: 3-pole, Line Protection
  • Overload Protection: In=630 A, Ir=250 A...630 A
  • Short-Circuit Protection: Isd=1.5...9x Ir, Ii=9x In
  • Includes Nut Keeper Kit
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2463-8HN32-0AA0
Net Weight -
5.09kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Adjustment range short-term delayed short-circuit release -
945 Ampere
Adjustment range undelayed short-circuit release -
5670 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
250 Ampere
Position of connection for main current circuit -
Front
Power loss -
162 Watt
Rated permanent current Iu -
630 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
150 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

£2,207.86
