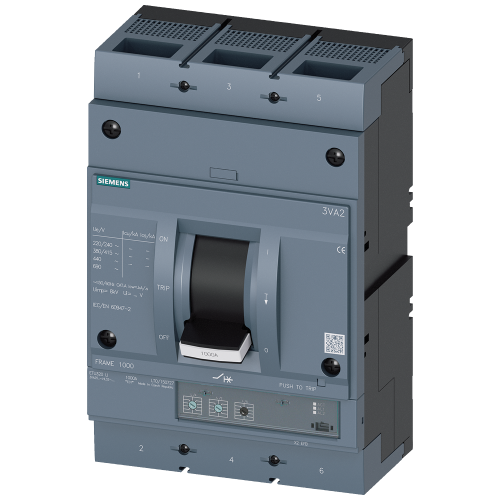

3VA25635HL320AA0

circuit breaker 3VA2 IEC Frame 1000 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU320, LI, In=630 A overl

Manufacturer's No: 3VA2563-5HL32-0AA0     Manufacturer: Siemens

Availability Back Order

£1,510.69
  • Circuit breaker 3VA2 IEC Frame 1000
  • Breaking capacity: Icu=55 kA @ 415 V
  • 3-pole, line protection with ETU320, LI
  • Rated current: In=630 A
  • Overload protection: Ir=250 A...630 A
  • Short-circuit protection: Ii=1.5...12 x In
  • Nut keeper kit included
Product video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA2563-5HL32-0AA0
Net Weight -
13.90kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range undelayed short-circuit release -
945 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
250 Ampere
Position of connection for main current circuit -
Front
Power loss -
144 Watt
Rated permanent current Iu -
630 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

£1,510.69
