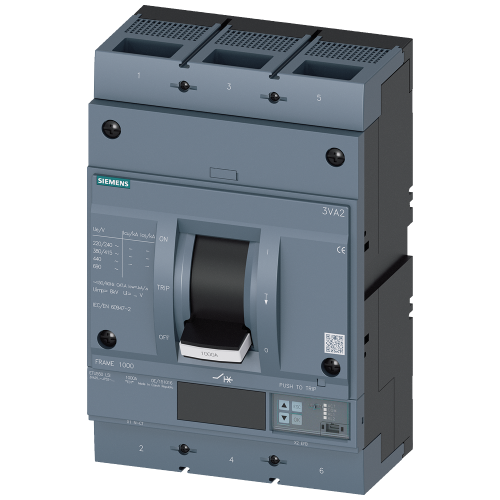

3VA25806JP320AA0

circuit breaker 3VA2 IEC Frame 1000 breaking capacity class H Icu=85 kA @ 415 V 3-pole, line protection ETU550, LSI, In=800 A over

Manufacturer's No: 3VA2580-6JP32-0AA0     Manufacturer: Siemens

Availability Back Order

£2,855.08
  • Circuit breaker 3VA2 IEC Frame 1000
  • Breaking capacity: Icu=85 kA @ 415 V
  • 3-pole, line protection with ETU550, LSI
  • Rated current: In=800 A
  • Overload protection: Ir=320 A...800 A
  • Short-circuit protection: Isd=0.6..10x In, Ii=1.5..10x In
  • Neutral conductor protection
  • Optional external current transformer
  • Up to 160% nut keeper kit

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2580-6JP32-0AA0
Net Weight -
14.04kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range short-term delayed short-circuit release -
480 Ampere
Adjustment range undelayed short-circuit release -
1200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
320 Ampere
Position of connection for main current circuit -
Front
Power loss -
231 Watt
Rated permanent current Iu -
800 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

£2,855.08
