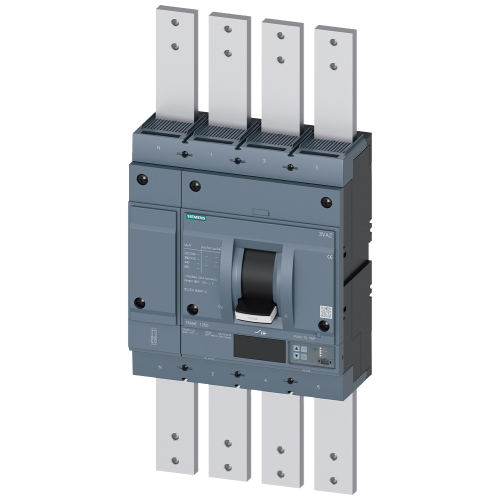

3VA26126JP470AA0

circuit breaker 3VA2 IEC Frame 1250 breaking capacity class H Icu=85 kA @ 415 V 4-pole line protection ETU550 LSI In=1250 A overl

Manufacturer's No: 3VA2612-6JP47-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 1250 breaking capacity class H Icu=85 kA @ 415 V 4-pole line protection ETU550  LSI In=1250 A overload protection Ir...

Availability On Request

£5,782.40
  • Circuit breaker: 3VA2 IEC Frame 1250
  • Breaking capacity: Icu=85 kA @ 415 V
  • 4-pole line protection with ETU550 LSI
  • Overload protection: In=1250 A, Ir=500 A
  • Short-circuit protection: Isd=06..10x In
  • Neutral conductor protection adjustable (OFF up to 100%)
  • Straight bus connectors
  • Extended design

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2612-6JP47-0AA0
Net Weight -
28.60kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
750 Ampere
Adjustment range undelayed short-circuit release -
1875 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
500 Ampere
Position of connection for main current circuit -
Front
Power loss -
516 Watt
Rated permanent current Iu -
1250 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
