3VA27105AB150AA0

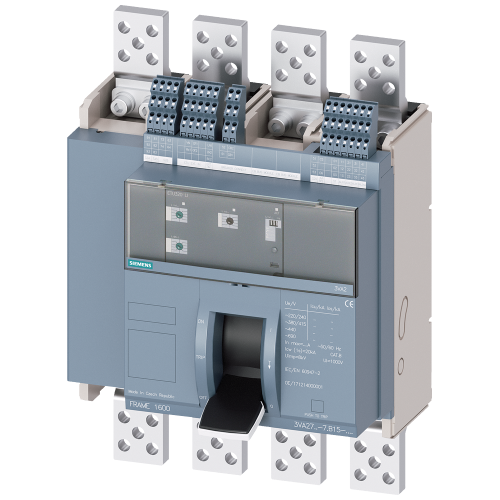

fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu M Icu=55kA @ 415V, 4-pole, lef

Manufacturer's No: 3VA2710-5AB15-0AA0     Manufacturer: Siemens
fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu M Icu=55kA @ 415V, 4-pole, left ETU320, LI, I...

Availability On Request

£4,397.96
  • Fixed-mounted molded case circuit breaker with handle frame 1600
  • 4 auxiliary contacts and trip alarm switch S24
  • Icu "M" rating of 55kA @ 415V
  • 4-pole configuration with left ETU320, LI
  • Rated current In of 1000A with rotary coding switch Ir=400-1000A
  • Adjustable N conductor protection at 50%, 100%, 200% of In
  • Straight bus connector extended
  • Mechanical calling feature included
  • No additional alarm switch assembly, communication connection, or measurement function
  • Does not include 2nd or 1st auxiliary release
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2710-5AB15-0AA0
Net Weight -
27.84kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Overload release current setting -
400 Ampere
Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range undelayed short-circuit release -
1500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
4
Power loss -
90 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£4,397.96
