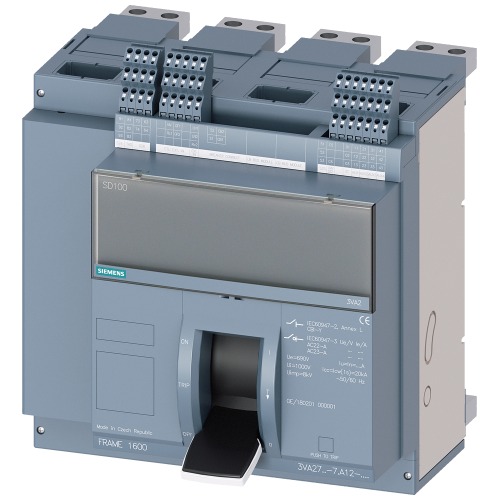

3VA27125AA120AA0

fixed-mounted sw. disconnector with handle frame 1600; 4AUX Icu=55kA @ 415V, 4-pole, left SD100; In=1250A without overload protect

Manufacturer's No: 3VA2712-5AA12-0AA0     Manufacturer: Siemens
fixed-mounted sw. disconnector with handle frame 1600; 4AUX Icu=55kA @ 415V, 4-pole, left SD100; In=1250A without overload protection w/o short-cir...

Availability On Request

£3,230.17
  • Fixed-mounted switch disconnector with handle frame 1600
  • 4-pole configuration with left side SD100
  • Rated operational current (In) of 1250A
  • Ultimate breaking capacity (Icu) of 55kA @ 415V
  • Rear horizontal connection
  • Mechanical calling feature included
  • No overload protection or short-circuit protection
  • No communication connection or measurement function
  • Excludes additional alarm switch assembly, 1st auxiliary release, and 2nd auxiliary release
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2712-5AA12-0AA0
Net Weight -
27.77kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
4
Power loss -
141 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£3,230.17
