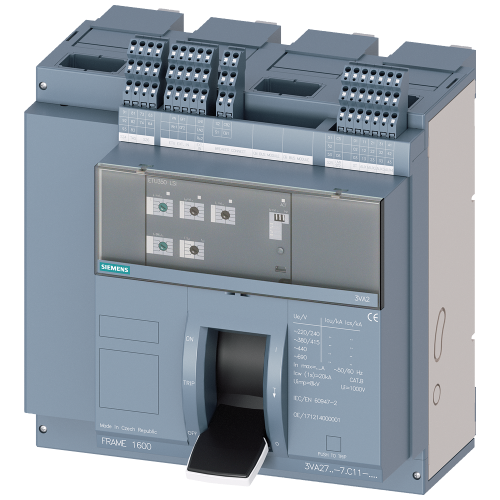

3VA27125AC110AA0

fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu M Icu=55kA @ 415V, 4-pole, lef

Manufacturer's No: 3VA2712-5AC11-0AA0     Manufacturer: Siemens
fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu M Icu=55kA @ 415V, 4-pole, left ETU350, LSI, ...

Availability On Request

£5,141.88
  • Fixed-mounted molded case circuit breaker with handle frame 1600
  • 4 auxiliary contacts and trip alarm switch S24
  • Icu "M" rating of 55kA @ 415V
  • 4-pole configuration with left ETU350, LSI
  • Rated current In of 1250A
  • Rotary coding switch for Ir ranging from 500A to 1250A
  • Short-time withstand current Isd from 1xIn to 10xIn
  • Instantaneous short-circuit release setting Ii from 1.5xIn to 15xIn
  • Adjustable N conductor protection settings at OFF, 50%, 100%, 200%
  • Rear vertical connection

Read more

  • Mechanical trip unit with no communication or measurement functions
  • Excludes additional alarm switch assembly, 2nd auxiliary release, and 1st auxiliary release
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2712-5AC11-0AA0
Net Weight -
28.11kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
4
Power loss -
141 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£5,141.88
