3VA27127AD510AA7

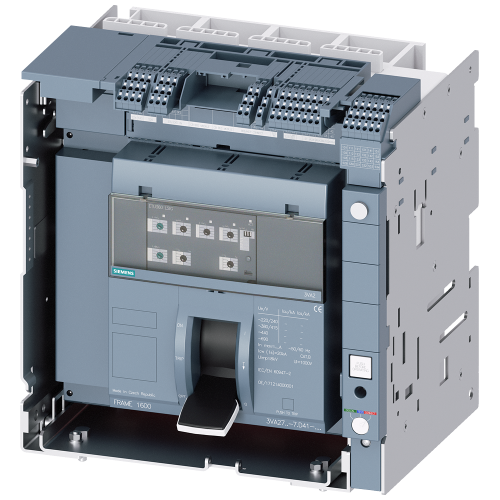

draw-out molded case circuit breaker w. handle with guide frame and PSS frame 1600; 4AUX and trip alarm switch S24; Icu C Icu=110k

Manufacturer's No: 3VA2712-7AD51-0AA7     Manufacturer: Siemens
draw-out molded case circuit breaker w. handle with guide frame and PSS frame 1600; 4AUX and trip alarm switch S24; Icu C Icu=110kA @ 415V, 4-pol...

Availability On Request

£8,127.56
  • Draw-out molded case circuit breaker
  • Handle with guide frame and PSS frame 1600
  • 4 auxiliary contacts and trip alarm switch S24
  • Icu "C" rating of 110kA @ 415V
  • 4-pole configuration, right ETU360, LSIG
  • Rated current In of 1250A
  • Rotary coding switch Ir=500...1250A
  • Short-circuit delay range Isd=1...10xIn
  • Instantaneous short-circuit release range Ii=1.5...15xIn
  • Adjustable N conductor protection settings at 50%, 100%, 200%

Read more

  • Ground-fault protection with switch-off capability Ig=0.1...1 x In, tg=0.1...0.8s
  • Rear vertical connection
  • No communication connection or measurement function
  • Mechanical calling feature included
  • 1st auxiliary release, ST Shunt release at 220-240 V AC/DC
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2712-7AD51-0AA7
Net Weight -
55.70kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
4
Power loss -
258 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection
