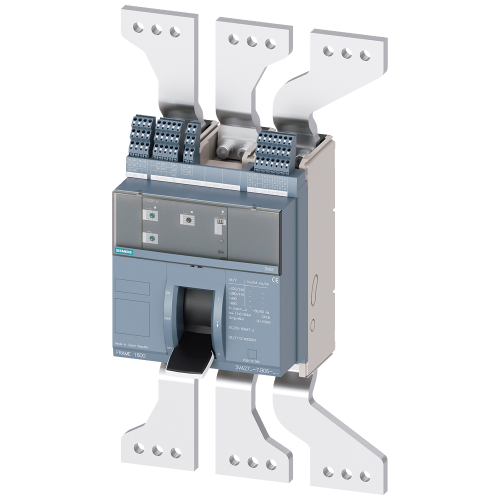

3VA27167AB060AA0

fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu C Icu=110kA @ 415V, 3-pole ETU

Manufacturer's No: 3VA2716-7AB06-0AA0     Manufacturer: Siemens
fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu C Icu=110kA @ 415V, 3-pole ETU320, LI, In=160...

Availability On Request

£5,924.80
  • Fixed-mounted molded case circuit breaker with handle frame 1600
  • 3-pole ETU320 with Icu=110kA @ 415V
  • Rated current In=1600A
  • Rotary coding switch with Ir=640-1600A and Ii=1.5-15 x In
  • Trip alarm switch S24
  • N conductor protection adjustable with optional external CT
  • Front bus connector offset up to 200%
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2716-7AB06-0AA0
Net Weight -
32.84kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
3
Power loss -
231 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£5,924.80
