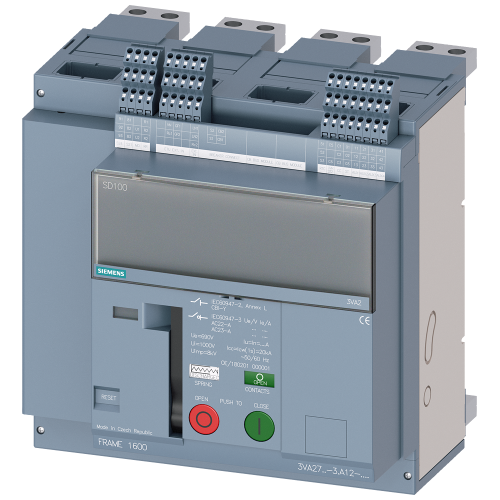

3VA27161AA121BB1

fixed-mounted sw. disconnector frame 1600; with RTC and 4AUX Icu=55kA @ 415V, 4-pole, left SD100; In=1600A without overload protec

Manufacturer's No: 3VA2716-1AA12-1BB1     Manufacturer: Siemens
fixed-mounted sw. disconnector frame 1600; with RTC and 4AUX Icu=55kA @ 415V, 4-pole, left SD100; In=1600A without overload protection w/o short-ci...

Availability On Request

£5,537.75
  • Fixed-mounted switch disconnector frame 1600 with RTC and 4 AUX
  • Icu=55kA @ 415V, 4-pole, left SD100
  • Rated current: 1600A
  • Motorized operating mechanism 24-30 V AC/DC
  • Rear horizontal connection
  • S21 spring energy store signaling switch
  • Includes electronic and mechanical calling
  • Switch-on solenoid (CC) 24 V AC/DC with 2nd auxiliary release
  • Undervoltage release 24 V AC/DC with 1st auxiliary release
  • Shunt release 24 V AC/DC
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2716-1AA12-1BB1
Net Weight -
30.67kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
4
Power loss -
231 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of electrical connection of main circuit -
Rail connection
With integrated under voltage release -

Availability On Request

£5,537.75
