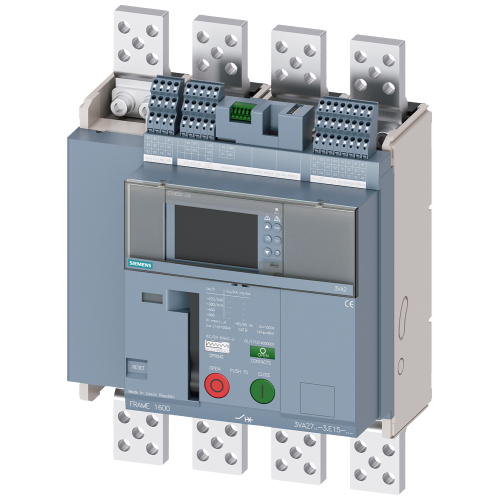

3VA27162AE151BB0

fixed-mounted molded case circuit breaker frame 1600; with RTC and 4AUX trip alarm switch S24; Icu H Icu=85kA @ 415V, 4-pole, left

Manufacturer's No: 3VA2716-2AE15-1BB0     Manufacturer: Siemens
fixed-mounted molded case circuit breaker frame 1600; with RTC and 4AUX trip alarm switch S24; Icu H Icu=85kA @ 415V, 4-pole, left ETU650, LSI, I...

Availability On Request

£9,325.75
  • Fixed-mounted molded case circuit breaker frame 1600
  • Icu=85kA @ 415V, 4-pole
  • ETU650, LSI, In=1600A
  • Ir=640-1600A, Isd=0.6-10xIn, Ii=1.5-15xIn
  • N conductor protection adjustable at OFF, 50%, 100%, 150%, 200%
  • Motorized operating mechanism 24-30V AC/DC
  • Spring energy store signaling switch with electronic and mechanical calling
  • Switch-on solenoid (CC) 24V AC/DC with 2nd auxiliary release UVR
  • Undervoltage 24V AC/DC instant without 1st auxiliary release
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2716-2AE15-1BB0
Net Weight -
30.74kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
4
Power loss -
231 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection
With integrated under voltage release -

Availability On Request

£9,325.75
