3VA27166AB350AF0

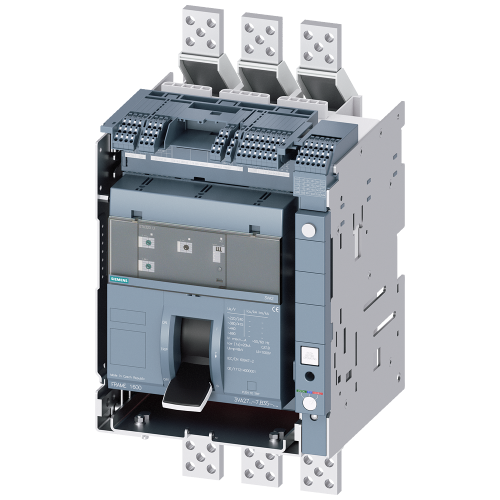

draw-out molded case circuit breaker w. handle with guide frame and PSS frame 1600; 4AUX and trip alarm switch S24; Icu H Icu=85kA

Manufacturer's No: 3VA2716-6AB35-0AF0     Manufacturer: Siemens
draw-out molded case circuit breaker w. handle with guide frame and PSS frame 1600; 4AUX and trip alarm switch S24; Icu H Icu=85kA @ 415V, 3-pole...

Availability On Request

£7,003.28
  • Draw-out molded case circuit breaker with handle and guide frame
  • PSS frame 1600
  • 3-pole ETU320 with Icu=85kA @ 415V
  • Rated current In=1600A
  • Rotary coding switch for Ir=640...1600A
  • Adjustable N conductor protection with external CT
  • Undervoltage release at 110-120V AC/DC
  • No communication connection or measurement function
  • Mechanical trip alarm switch S24
  • 4 auxiliary contacts

Read more

  • Instantaneous undervoltage release
  • Optional 2nd auxiliary release UVR
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2716-6AB35-0AF0
Net Weight -
51.37kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Overload release current setting -
640 Ampere
Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range undelayed short-circuit release -
2400 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
3
Power loss -
423 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection
With integrated under voltage release -

Availability On Request

£7,003.28
