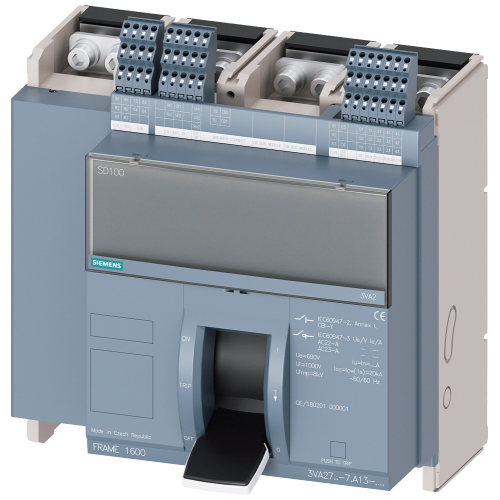

3VA27805AA131AA0

fixed-mounted sw. disconnector with handle frame 1600; 4AUX Icu=55kA @ 415V, 4-pole, left SD100; In=800A without overload protecti

Manufacturer's No: 3VA2780-5AA13-1AA0     Manufacturer: Siemens
fixed-mounted sw. disconnector with handle frame 1600; 4AUX Icu=55kA @ 415V, 4-pole, left SD100; In=800A without overload protection w/o short-circ...

Availability On Request

£2,214.39
  • Fixed-mounted switch disconnector with handle frame 1600
  • 4-pole, left SD100
  • Rated current: 800A
  • Icu: 55kA @ 415V
  • No overload protection
  • No short-circuit protection
  • Trip alarm switch TAS and S25 included
  • Mechanical calling feature
  • Nut keeper kit included
  • No communication connection

Read more

  • No measurement function
  • No 1st or 2nd auxiliary release
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2780-5AA13-1AA0
Net Weight -
24.80kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
4
Power loss -
57.9 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£2,214.39
