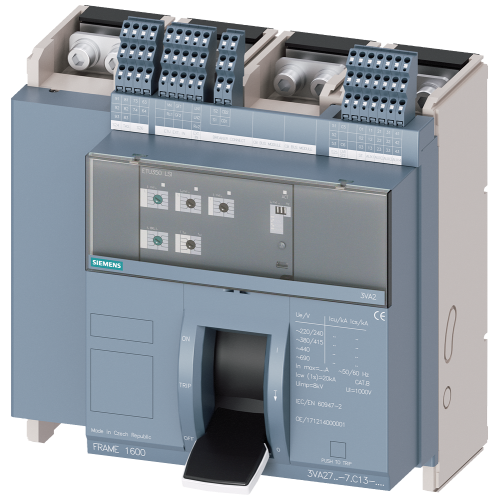

3VA27806AC130AA0

fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu H Icu=85kA @ 415V, 4-pole, lef

Manufacturer's No: 3VA2780-6AC13-0AA0     Manufacturer: Siemens
fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu H Icu=85kA @ 415V, 4-pole, left ETU350, LSI, ...

Availability On Request

£3,332.61
  • Fixed-mounted molded case circuit breaker with handle frame 1600
  • 4 auxiliary contacts and trip alarm switch S24
  • Icu "H" rating of 85kA @ 415V
  • 4-pole configuration with left ETU350, LSI
  • Rated current In of 800A
  • Rotary coding switch for Ir range of 320A to 800A
  • Short-time withstand current Isd range of 1xIn to 10xIn
  • Instantaneous short-circuit release setting Ii range of 1.5xIn to 15xIn
  • N conductor protection adjustable at 0%, 50%, 100%, 200%
  • Nut keeper kit included

Read more

  • No communication connection or measurement function
  • Mechanical trip unit with no additional alarm switch assembly
  • Does not include 1st or 2nd auxiliary release
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2780-6AC13-0AA0
Net Weight -
24.97kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Overload release current setting -
320 Ampere
Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range short-term delayed short-circuit release -
800 Ampere
Adjustment range undelayed short-circuit release -
1200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
4
Power loss -
57.9 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection
