3VA41101BB243AA0

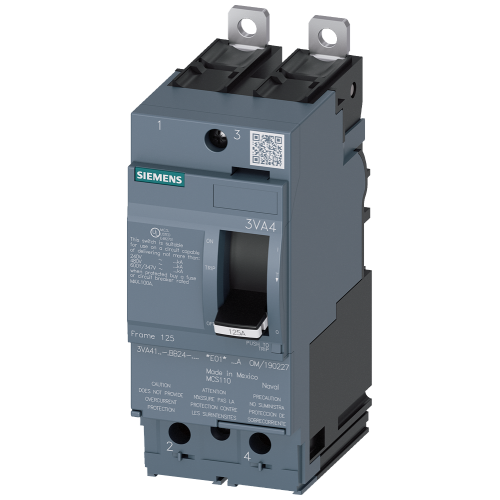

Molded case switch 3VA4 UL frame 125 max. short-circuit breaking capacity 65 kA

Manufacturer's No: 3VA4110-1BB24-3AA0     Manufacturer: Siemens
Molded case switch 3VA4 UL frame 125 max. short-circuit breaking capacity 65 kA

Availability On Request

£240.83
  • Molded case switch 3VA4 UL frame 125
  • Max short-circuit current rating: 65kA @ 480V
  • 2-pole MCS110
  • Rated current: 100A
  • Self-protection feature with Ii=16 x In
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA4110-1BB24-3AA0
Net Weight -
0.51kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
MX
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
2
Power loss -
12.3 Watt
Rated permanent current Iu -
100 Ampere
Rated voltage -
415 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
