3VA41356ED241AA0

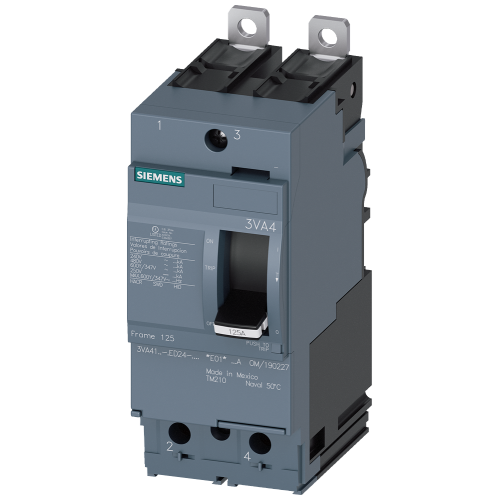

Circuit breaker 3VA4 UL frame 125 breaking capacity class H 65 kA @ 480 V 2-pole

Manufacturer's No: 3VA4135-6ED24-1AA0     Manufacturer: Siemens
Circuit breaker 3VA4 UL frame 125 breaking capacity class H 65 kA @ 480 V 2-pole

Availability On Request

£249.94
  • Circuit breaker 3VA4 UL Frame 125
  • Breaking capacity: 65 kA @ 480 V
  • 2-pole, line protection TM210
  • Overload protection: In=35 A
  • Short-circuit protection: Ir=35 A, Ii=10 x In
  • UL489 SB (naval)
  • Terminal connection: 50 degrees Celsius

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA4135-6ED24-1AA0
Net Weight -
0.51kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
MX
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
2
Power loss -
6.5 Watt
Rated permanent current Iu -
35 Ampere
Rated voltage -
415 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
